Aluminum doors and windows fully automatic corner saw

1、 Concept:

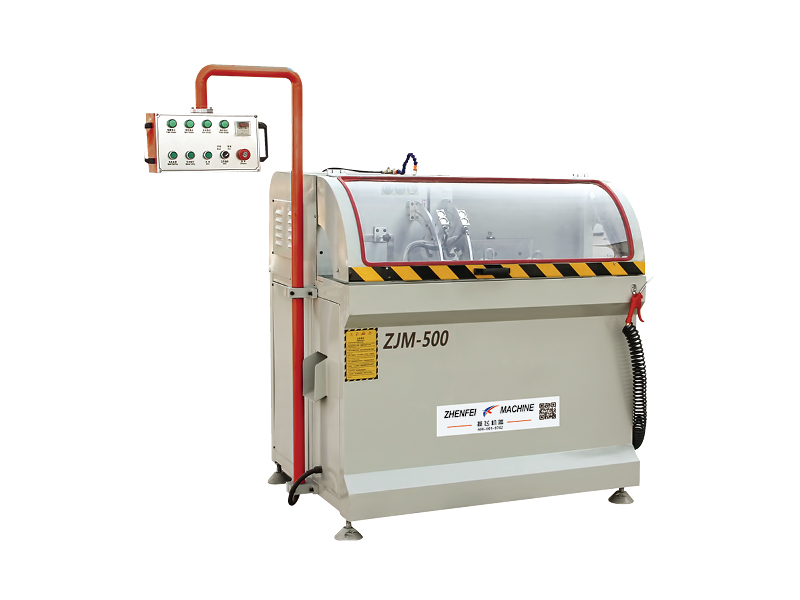

The ZJM-500 fully automatic corner code cutting saw for aluminum doors and windows is a specialized equipment for cutting aluminum alloy corner codes and can be used for cutting plastic profiles.

2、 Equipment features:

1. Specially designed for cutting corner codes of aluminum doors and windows, automatically inputting the number of cutting pieces.

2. It is an automatic model, and manual installation of profiles is only required once. All processing is automatically completed by the machine.

3. Imported linear bearing motion pair ensures stable feed accuracy.

4. Special hard alloy saw blade, hydraulic damping cylinder drives cutting feed.

3、 Main specifications and technical parameters:

Power supply: 380V 50Hz Motor power: 3kw

Motor speed: 2800r/min Working pressure: 0.6-0.8MPa

Saw blade feed rate: 0-3m/min Saw blade specification: 500 × 30 × 4.4 × Z100

Dimensions: 2500mm x 1800mm x 1500mm (length x width x height)
